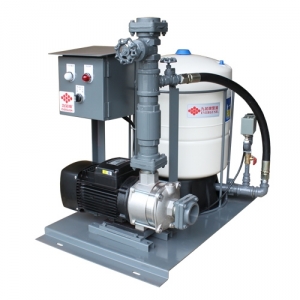

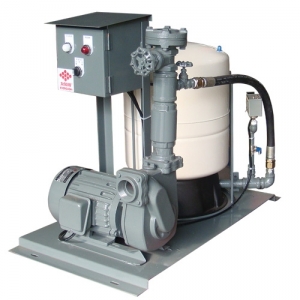

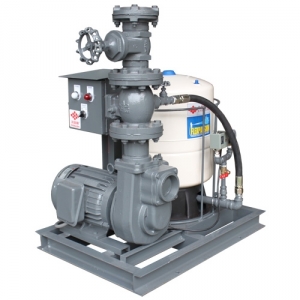

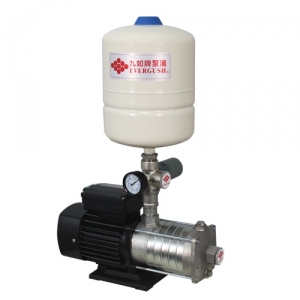

MC Auto Booster Pump System(Simplex)

FEATURES
1.  Customized design. 2.  Auto boost water pressure to where the water pressure is not sufficient. 3.  Included Water pumps, Diaphragm pressure tank, pressure switch, valves, control panels, All      incorporated into 1 auto booster pump system. PUMP SELECTIONS
APPLICATIONS
Auto Water supply for sprinkler system of garden, park, play-ground.     Auto Boost water pressure to construction site.     Auto Boos water pressure to factories, schools, public lavatory.
OPERATING CONDITIONS
1. Ambient Temperature:  0~+50℃ 2. Liquid Temperature:  +4~+60℃ (If delivering water temperature is over 60C, we strongly recommend to replace for heat-resistant "VITON" mechanical seal) 3. Clean or potable water or no corrosive chemicals liquids without abrasives. 4. Working Pressure: Max. 5~20bar.(depending on pumps)
SPECIFICATION
Power: 1/2HP~150HP     Motor Protection: IP54     Insulation: E,B,F     Pole: 2P,4P     Voltage: 1phase 110/220V*60HZ(1HP~3HP); 3phase 220/380/440/660*60HZ             1phase220~240V*50HZ(1HP~3HP); 3phase 380~415V*50HZ     Suction/Discharge: 1” ~ 10”     Max.Head:  85M     Max.Capacity:  16,000 LPM (16M³/HR)
