HTPE Epoxy Primer
|
|
|
|
| |
|
Product description
The Epoxy Primer is a two component, solvent free, proprietary formulation. The components are mixed prior to application in the field. The resultant coating forms the first layer of corrosion protection, in a 3 Layer system. The primer should be applied on the pre-heated bare steel surface, as well as the line coating where the sleeve will be shrunk. The resultant film ensures superior corrosion protection.
Features:
(1) Excellent corrosion resistance.
(2) Several colors available such as black, gray, green and red .
(3) Conformable to irregular pipe
(4) Compatible with general coating system.
Specification: (mm):
Sleeves width: 100mm, 150mm, 200mm, 300mm, 450mm, 500mm, 600mm, 900mm
Structure:
Technical data:
|
Properties
|
Unit
|
Value
|
|
Specific Gravity (A)
|
g/cm3
|
1.41
|
|
Specific Gravity (B)
|
g/cm3
|
0.95
|
|
Volume of Solids
|
%
|
99.6
|
|
Weight of Solids
|
%
|
99.5
|
|

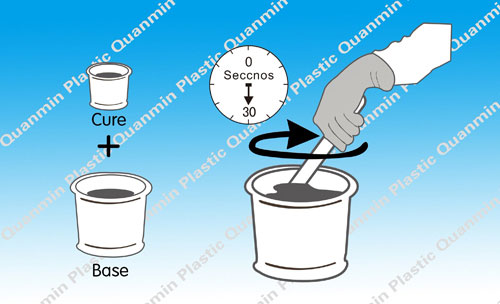

Mixing Ratio (by weight)
|
--
|
100:37--44
|
|
Coating thickness
|
Microns
|
200
|
|
Pot Life @ 23ºC
|
minutes
|
≥10
|
|
Shelf Life @ 23ºC
|
years
|
1
|
|
Color
|
--
|
black, gray, green and others
|
Ordering information: Primer is normally supplied in kit form, consisting of pre-measured quantities of Base & Cure packed separately, along with small tools like mixing stick, protective gloves and application pad. Please mention the pipe size for ordering the kits. Primer can be supplied in bulk form against special request.
Application guide :
|
Pipe
Size
|
Pipe
OD
(mm)
|
Primer Quantity
|
|
Part A(Base)
(gms)
|
Part B(Cure)
(gms)
|
|
DN
|
Inch
|
|
100
|
4
|
114
|
44
|
19
|
|
125
|
5
|
141
|
55
|
24
|
|
150
|
6
|
168
|
65
|
28
|
|
200
|
8
|
219
|
84
|
37
|
|
250
|
10
|
273
|
105
|
46
|
|
300
|
12
|
324
|
125
|
55
|
|
350
|
14
|
356
|
137
|
60
|
|
400
|
16
|
406
|
157
|
69
|
|
450
|
18
|
457
|
176
|
77
|
|
500
|
20
|
508
|
196
|
86
|
|
600
|
24
|
610
|
235
|
103
|
|
700
|
28
|
711
|
273
|
120
|
|
800
|
32
|
813
|
313
|
138
|
|
900
|
36
|
914
|
352
|
154
|
|
1000
|
40
|
1016
|
391
|
172
|
|
1100
|
44
|
1120
|
431
|
189
|
|
1200
|
48
|
1220
|
469
|
203
|
|
1400
|
56
|
1420
|
546
|
240
|
|
1500
|
60
|
1520
|
585
|
257
|
Note: Above quantities are for a 450mm wide sleeve. For other sleeve widths, quantity of primer can be calculated proportionately.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
