Tubular Heat Shrinkable Sleeves (HSTS)
|
|
|
|
| |
|
Product profile
Heat Shrinkable Tubular Sleeves (HSTS) consist of a cross-linked polyolefin backing, coated with an adhesive which effectively bonds to steel substrates and common pipeline coating including polyethylene and fusion bonded epoxy. Tubular type sleeves are installed before joining the pipe ends by sliding the coat from a free end of the pipe onto the area to be coated. It is designed for corrosion protection of flanges, bell and spigot joints and other high profile couplings.
Features & Benefits:
(1) Heat Shrinkable Tubular Sleeves are superior performance heat shrinkable products designed for corrosion protection of flanges, bell and spigot joints and other high profile couplings.
(2) HSTS provide great corrosion protection, Superior resistance to Cathodic Disbondment and excellent durability against abrasion and chemical attack. The result is effective, good performance of sealing, wide application, easy to operate and preheating temperature low (50 ºC), long term protection against corrosion.
(3) Tubular design allows for convenient and fast installation because less time is spent handling the sleeve and closure
(4) Cross-linked backing provides superior abrasion, mechanical and chemical attack resistance.
(5) High performance adhesive provides excellent resistance to Cathodic Disbondment to ensure long-term corrosion protection
Properties of Melt Adhesive Sealant:
|
Physical Properties
|
Typical Values
|
Unit
|
Test Method
|
|
Thickness(min)
|
1.1(45) to1.6(65)
|
mm(mils)
|
ASTM D1000
|
|
Softening point
|
110（230）
|
ºC（℉）
|
ASTM E28
|
|
Lap shear strength At 23 ºC
|
2.8 (406)
|
Mpa(psi)
|
ASTM D1002
|
|
Lap shear strength At 80℃
|
0.18(26)
|
Mpa(psi)
|
ASTM D1002
|
PE Properties of sleeve:
|
Physical Properties
|
Typical Values
|
Unit
|
Test Method
|
|
Width
|
300（12）to700（28）
|
mm(Inch)
|
ASTM D1000
|
|
Thickness(min)
|
0.6(24)to1.1(43)
|
mm(mils)
|
ASTM D1000
|
|
Specific gravity
|
0.93
|
g/cm3
|
ASTM D792
|
|
Tensile strength
|
24(3480)
|
Mpa(psi)
|
ASTM D638
|
|
Elongation
|
700 ↑
|
%
|
ASTM D638
|
|
Hardness
|
50
|
Shore D
|
ASTM D2240
|
|
Volume resistivity
|
1×1015
|
Ohm-cm
|
ASTM D257
|
|
Dielectric breakdown
|
32
|
KV
|
ASTM D149
|
|
Water absorption
|
0.1↓
|
%
|
ASTM D570
|
|
Water-vapour transmission
|
0.05↓
|
g/ m2·24h
|
ASTM E96
|
Properties of sleeve :
|
Physical Properties
|
Typical Values
|
Unit
|
Test Method
|
|
Thickness(min)
|
1.7(67)to2.7 (106)
|
mm(mils)
|
ASTM D1000
|
|
Impact Resistance
|
15↑
|
N·m
|
ASTM G14
|
|
Volume resistivity
|
1×1017
|
Ohm-cm
|
ASTM D257
|
|
Dielectric breakdown
|
40
|
KV
|
ASTM D149
|
|
Water absorption
|
0.05↓
|
%
|
ASTM D570
|
|
Water-vapour transmission
|
0.05↓
|
g/ m2·24h
|
ASTM E96
|
Properties of Installed sleeve:
|
Physical Properties
|
Typical Values
|
Unit
|
Test Method
|
|
Thickness(min)
|
1.9(75) to 3.0(118)
|
mm(mils)
|
ASTM D1000
|
|
Impact Resistance
|
20
|
N·m
|
ASTM G14
|
|
Free longitudinal contraction
|
25
|
%
|
ASTM D2732
|
|
Peel strength
|
To Primer Steel
|
160
|
N/cm
|
ASTM D1000
|
|
To PE Lining
|
100
|
N/cm
|
ASTM D1000
|
|
Cathodic Disbondment
|
15
|
mm
|
ASTM G8
|
|
Low Temp Flexibility
|
-32（-26）
|
ºC（℉）
|
ASTM D2671-C
|
|
Max. Operation Temperature
|
65（149）
|
ºC（℉）
|
-
|

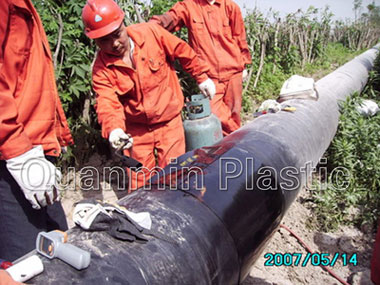

Working drawing
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
