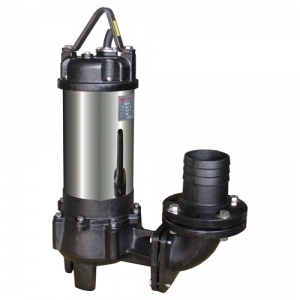

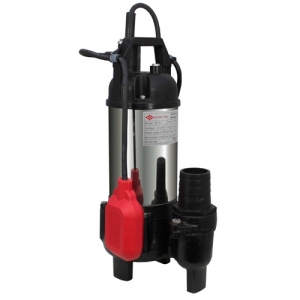

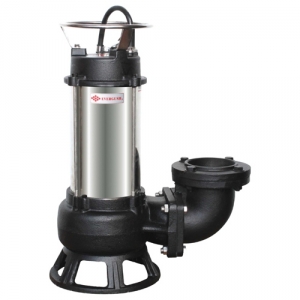

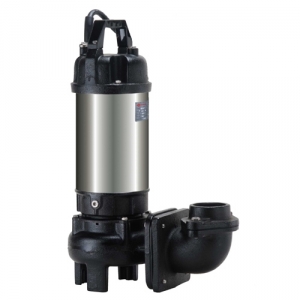

EF Submersible Sewage Pump

FEATURES
1. Non-clogging impeller, minimized abrasive wear,large impeller clearance, and maintenance free. 2. Pump is equipped with motor overload protector,it will shut off automatically to prevent motor from burnout whenever its voltage drop, impeller plugged, and other unusual conditions. 3. The mechanical seal part combines with superb double set mechanical seals, and can select SIC carbon steel mechanical seal. 4. Auto float switch is opitional, to operate submersible pumps automatically.
APPLICATIONS
1. Building waste water treatment system, sewage treatment plant, community market. 2. Drainage waste water from industry and factory. 3. Fishery, animal husbandry, dairy farm, piggery,fecal sewage tank. 4. Other sewage or sump treatment system. 5. EF type is suitable for PH 3~11 waste water.
OPERATING CONDITIONS
1. Ambinent Temperature:  0~+40℃ 2. Liquid Teperature:  +0~+40℃ 3. No 24 hrs continously operation 4. No run pumps without water.
SPECIFICATION
Power: 0.5HP~20HP (0.37KW~15KW) Motor: IP68 / Insulation F 1Phase 220V/240V (1/2HP~2HP) 3Phase 220V/380V/415V/440) Single phase motor built in thermal overload protector Speed: 2950rpm/3550rpm Frequency: 50Hz/60Hz Max. Head:  31M Max. Capacity: 141M³/Hr (2,350 LPM)
DOWNLOAD
EF Submersible Sewage Pump Brochure Download(50HZ) (Link)  EF Submersible Sewage Pump Brochure Download(60HZ) (Link)  EF Submersible Sewage Pump Instruction Manual Download (Link)  Brief Brochure of Submersible Pump Download (Link)
