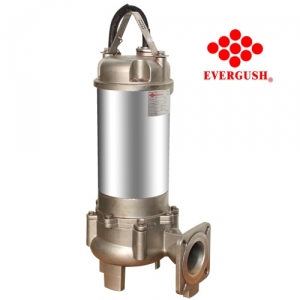

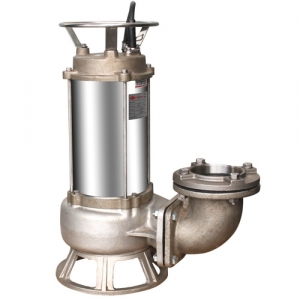

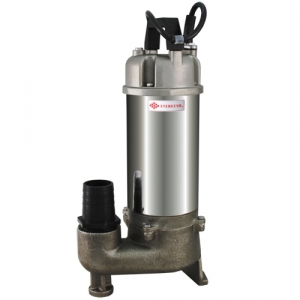

EFS Stainless Steel Submersible Sewage Pump

FEATURES
1. Non-clogging impeller, minimized abrasive wear,large impeller clearance, and maintenance free. 2. Pump is equipped with motor overload protector,it will shut off automatically to prevent motor from burnout whenever its voltage drop,impeller plugged, and other unusual conditions. 3. The mechanical seal part combines with superb double set mechanical seals, and can select SIC carbon steel mechanical seal. 4. Impeller and pump casing is made of stainless steel SUS316 for sea water use.
APPLICATIONS
Building waste water treatment system, sewage treatment plant, community market. Drainage waste water from industry and factory. Fishery, animal husbandry, dairy farm, piggery,fecal sewage tank. Other sewage or sump treatment system. Drainage sea water.
OPERATING CONDITIONS
1.  Ambient Temperature:  0~+40℃ 2.  Liquid Temperature:  +0~+40℃ 3.  Max. Depth: 30M 4.  Forbid 24 hours continuously running or running pumps under lowest running water level. 5.  Solid Passage: 35~50MM
SPECIFICATION
Output: 1/2HP~7.5HP Protection: IP68 Insulation: F Pole: 2P Voltage: 1phase 110 or 220V*60HZ(1/2hp~2hp)  3phase 220 or 380V*60HZ 1phase 220~240V*50HZ(1/2hp~2hp)  3phase 380~415V*50HZ Discharge: 2” ~ 4” Max. Head:  28.5M Max. Capacity:  1350 LPM (81M³/Hr)
DOWNLOAD
EFS Stainless Steel 316 Sewage Pump Brochure Download(50HZ) (Link)
