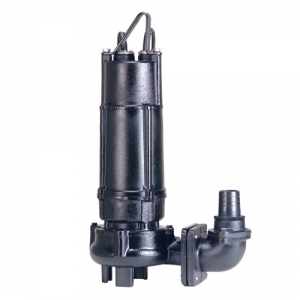

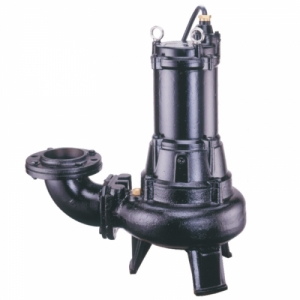

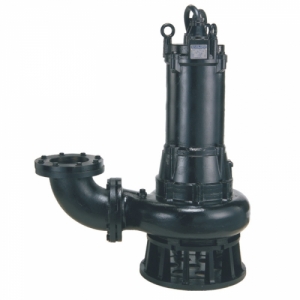

EAF Heavy duty Sewage/Waste Water Pump

FEATURES
1.Equipped with weatherproof and waterproof cable. Wiring and core wire are impregnated with EPOXY.   Not only avoid the moist going into the motor, but also leakage-proof and moisture-proof. 2.All series motors are equipped with dry motor of 3-phase and 2 poles or 4 poles, coil of class F isolation.   It is the character of overheat-resistant and perfect isolation. Enclosure is IP68 grade of protection. 3.The material of silicon carbide has the character of mud-resistant and excellent lubrication system and is   good for long-time running. The dual enclosed structure has a diaphragm; it is preventing strongly from leaking. 4.Pump is equipped with the motor overload protector and will shut itself off automatically to prevent from   overheating whenever its voltage drop, impeller plugged,the draining line is below the pump’s watermark and   other unusual conditions. 5.Pump is coated with thick EPOXY. It is better corrosion-resisting and rust-resisting than common paint; prevent  the surface of pump from rusting. 6.Pump is equipped with the motor overload protector and will shut itself off automatically to prevent from  overheating whenever its voltage drop, impeller plugged,the draining line is below the pump’s watermark and  other unusual conditions. 7.There are 3 kinds of impellers as the pictures. You can select close semi-open, closed and non-clogging.  Suitable model will help you to do with properly all kind drainage of waste water or sewage.
APPLICATIONS
1.Building waste water treatment system, sewage treatment plant, community market,    sanitary sewer. 2.Drainage waste water from paper industry, dyeing industry, foodstuff industry, leather industry    and iron and steel industry. 3.Fishery, animal husbandry, dairy farm, piggery, fecal sewage tank and industry water supply. Other    sewage or sump treatment system.
OPERATING CONDITIONS
1. Ambient Temperature:  +0~+40℃ 2. Liquid Temperature:  +0~+40℃ 3. Max. Depth: 30M 4. Forbid 24 hours continuously running or running pumps under lowest running water level. 5. Solid Passage: 45~80MM
SPECIFICATION
1. Power(output): 2HP~20HP(60HZ); 2HP~7.5HP(50HZ).  2. Motor Protection: IP68 3. Insulation: F 4. Pole: 2P,4P (only 60HZ) 5. Voltage: Three Phase220 or 380V*60HZ Three Phase 380~415V*50HZ 6. Discharge: 2” ~ 8” 7. Max.Head:  40M 8. Max.Capacity:  6950 LPM ( 417M³/Hr)
DOWNLOAD
EAF Heavy duty Submersible Sewage/Wastewater Pump Brochure Download(60HZ) (Link)  EAF Heavy duty Submersible Sewage/Wastewater Pump Brochure Download(50HZ) (Link)
