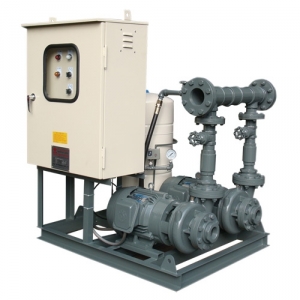

PC Auto Booster Pump System(Duplex)

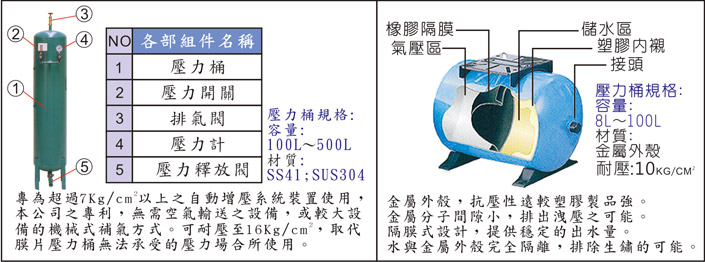

Features::   Customized design. Auto boost water pressure to where the water pressure is not sufficient. Included Water pumps,Diaphragm pressure tank,pressure switch,valves,control panels,All incorporated into 1 auto booster pump system.  Pump Selections: Pressure Tank selections |||| Applications:: Auto Water supply for sprinkler system of garden,park,play-ground. Auto Boost water pressure to construction site. Auto Boos water pressure to factories,schools,public lavatory. |||| Operating Conditions:: 1. Ambient Temperature:  0~+50℃ 2. Liquid Temperature:  +4~+60℃ (If delivering water temperature is over 60C, we strongly recommend to replace for heat-resistant "VITON" mechanical seal) 3. Clean or potable water or no corrosive chemicals liquids without abrasives. 4. Working Pressure: Max. 5~20bar.(depending on pumps) |||| Specification:: Power: 1/2HP~150HP Protection: IP54~55 Insulation: E,B,F Pole: 2P,4P Voltage: 1phase 110;220V*60HZ(1~3HP); 3phase 220/380/440/660*60HZ         1phase 220~240V*50HZ(1~3HP); 3phase 380~415V*50HZ  Suction/Discharge: 1” ~10” Head:  Max. 250 M Capacity:  7~1920M³/hr.(Duplex operation)
