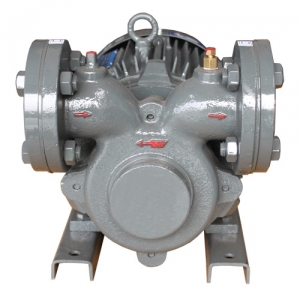

HDP High Pressure Boiler Feed Pump
| |
|
|
 |
 |
|
| |
|
|
| FEATURES |
|
|
| |
|
|
1. The motor and pump is connected with same shaft which will cancel out the fluctuation from the motor. It has low operating noise.
2. It adopts high quality mechanical seal prevents from leakage and extends product life span. The impeller is made of bronze material which has
better performance and wear-resistant.
3. Compact & robust structure which save space and easy installation.
|
 |
|
|
| APPLICATIONS |
|
|
| |
|
|
1. Water supply for boiler, factories, residential buildings, hospitals and schools.
2. Water supply for construction sites and civil engineering projects.
3. Water supply for jockey pumps.
4. High pressure washing facilities. |
| |
|
|
| OPERATING CONDITIONS |
|
|
| |
|
|
1. Ambient temperature:+2~+50C.
2. Liquid temperature:+2~+60C.
3. Max. working pressure: 20 kg/cm2.
4. It is adequate for clean and underground water.
5. Do not use it for sea water or highly corrosive liquid. |
| |
|
|
| SPECIFICATION |
|
|
| |
|
|
1.Output: 1HP~20HP
2.Motor Protection: IP54
3.Motor Insulation: E,B,F
4.Pole: 2P
5.Voltage: 1phase110/220V*60HZ(1HP~2HP);
3phase 220/380/440/660*60HZ
6.Inlet/Outlet: 1” ~2”
7.Max.Head(Pressure): 230 M (23Kg/cm2)
|
| |
|
|
