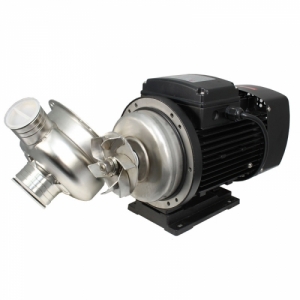

EDWK Stainless Steel Centrifugal Pump

FEATURES
Main parts which contact the liquids are made in stainless steel SUS304. Durable mechanical seal to prevent from leakage. Material: CARBON+CERAMIC+Teflon. Multi-purpose,Transport a wide range of liquids. Fully Open type impeller allow long fibrous materials and other solid to pass through;Solid Passage: Max.19MM.
APPLICATIONS
Clean vegetables,meat,seafood.     清洗金屬零件、容器、線材的裝置。     清洗瓶子、罐子、玻璃容器、箱籃等等。     Clean and cooling circulation system of industrial 。     油漆間和一般污濁液體的流程工藝處理。     Liquids included   。     Swimming pool,drainage system and agriculture irrigation.
OPERATING CONDITIONS
1. Ambient Temperature:  +0~+50℃ 2. Liquid Temperature:  +0~+90℃ 3. Working Pressure: Max.10 BAR. 4. Solid passage: Max.19MM.
SPECIFICATION
Output: 1.5HP~4HP Motor Protection: IP55 Insulation: F Pole: 2P Voltage: Single phase 220V*60HZ; Three phase 220/380/440/660*60HZ       Single phase 220~240V*50HZ; Three phase 380~415V*50HZ  Suction/Discharge: 2” ~21/2” Max.Head:  21 M Max. Capacity:  750LPM (45M³/Hr)
