ECF Electronic auto booster multi-stage pump(SUS304)
| |
|
|
|
|
 |
 |
 |
 |
|
| |
|
|
|
|
| FEATURES |
|
|
|
|
| |
|
|
|
|
Features::
- Stainless steel pump construction for clean water provided.
- Low noise, high efficiency for less power consumption.
- Auto controller is attached with pressure gauge that can determine the field work pressure.
- Dry-running detection. It will switch off in 15 seconds automatically once no water flows in, to avoid motor burn out.
- May adjust appropriate activation pressure point according to the field condition.

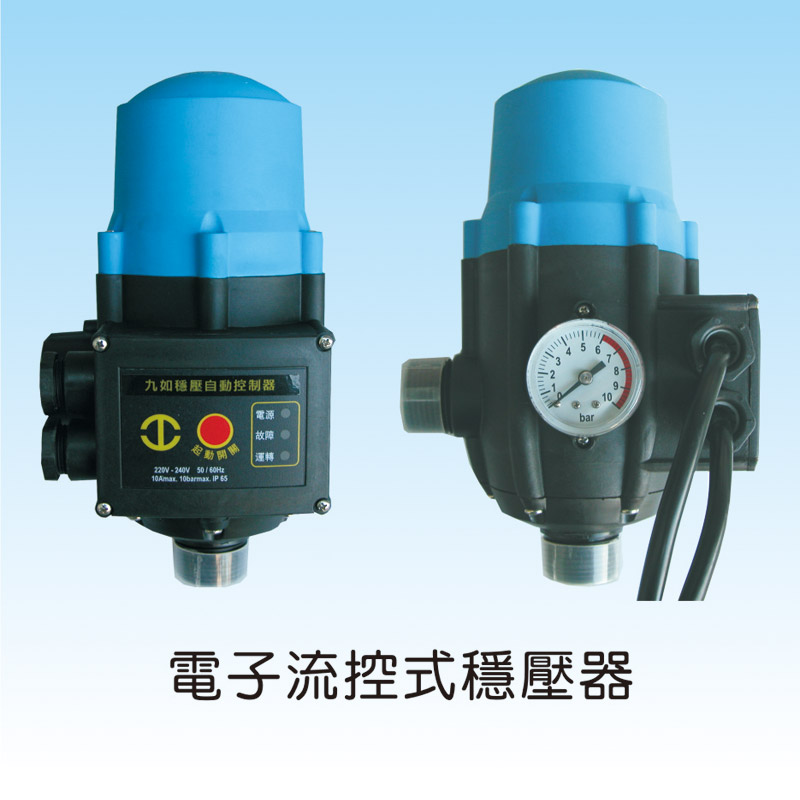

ELECTRONIC AUTO CONTROLLER |

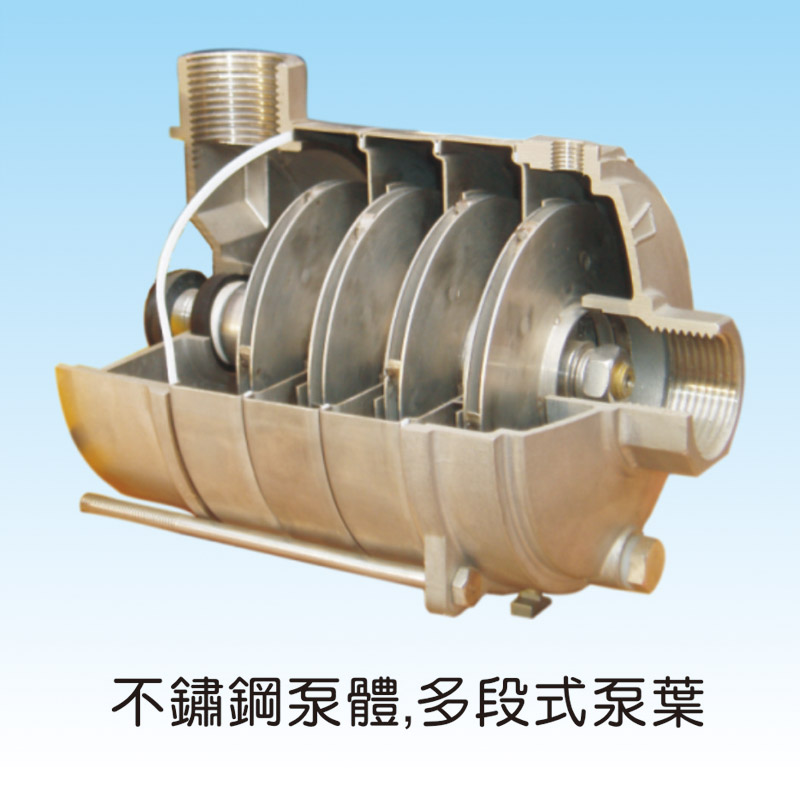

STAINLESS STEEL (SUS304) PUMP CONSTRUCTION |
|
|
|
|
|
|
| APPLICATIONS |
|
|
|
|
| |
|
|
|
|
|
1. For clean liquids, without solid or filamentary matter, which are non-explosive,
non-corrosive or non-inflammable for the pump materials.
2. Garden sprinkler systems and booster systems
3. Air conditioning and cooling systems, washing plants and other special uses.
4. Water supply or boost water pressure for apartments and residences.
5. Water pressure boosting and water supply for barber shop, restaurant, washing machine, residence,apartment, villas,hot water heater.
|
| |
|
|
|
|
| OPERATING CONDITIONS |
|
|
|
|
| |
|
|
|
|
- Ambient Temperature: 0~40℃
- Liquid Temperature: 4~60℃
- Relative Humidity: Max. 85%(RH)
- Working Pressure: Max.8bar
- Be sure that the inlet pressure is less than 1.5bar.The pre-set activation pressure by manufacturer is 1.5bar.
- Prevent ECF model from directly exposed to sunshine and heavy rain.
|
| |
|
|
|
|
| SPECIFICATION |
|
|
|
|
| |
|
|
|
|
- Power: 0.75HP;1HP;1.3HP
- Motor Protection: IP54
- Motor Insulation: B
- Voltage: Single phase 110/220V*60HZ ; Single phase 220~240V*50HZ
- Suction/Discharge: 1”
- Max. Head: 46M
- Max. Capacity: 120LPM
|
| |
|
|
|
|
