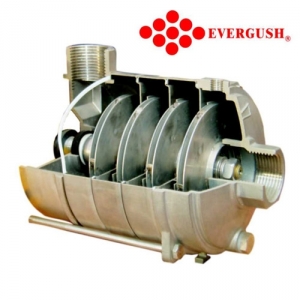

EBF Light-duty Multi-stage Centrifugal Pump

FEATURES
1. Fully stainless steel pump construction to ensure clean water provided. 2. Low operation noise, high motor efficiency. 3. Compact structure, space-saver, and easy to install and dismantle.
APPLICATIONS
1. For clean liquids, without solid or filamentary matter, which are non-explosive,non-corrosive or non-inflammable for the pump materials. 2. Garden sprinkler systems and booster systems 3. Air conditioning and cooling systems, washing plants and other special uses. 4. Water supply for apartments and residences.
OPERATING CONDITIONS
1.Ambient Temperature:  2~+50℃. 2.Liquid Tempwrature:  +2~+60℃. 3.Potable Water or non-corrosive liquids without abrasives. 4.Working Pressure: Max. 10 bar. 5.Suction Lift: Max.4M.
SPECIFICATION
1.Power(Output): 0.75HP;1HP;1.3HP 2.Motor Protection: IP54 3.Insulation: F 4.Voltage: Single phase110;220V*60HZ ; Single phase220~240V*50HZ             3 phase220/380V*60HZ; 3 phase 380~415V*50HZ. 5.Suction/Discharge:  1” 6.Max. Head:  46M 7.Max.Capacity:  8.5M³/H
DOWNLOAD
EBF Light-duty Multi-stage Centrifugal Pump Brochure Download(50HZ) (Link)
