VS Inverter Control Constant Pressure Pump

FEATURES

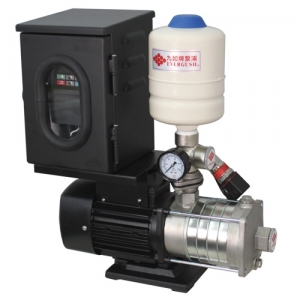

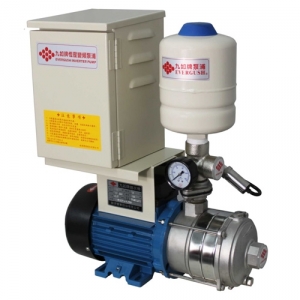

1.The VS is a complete, all-in-one unit, consisted of stainless steel multi-stage pump, motor, pressure tank, and inverter controller. 2. The pump is constructed from top quality and corrosion resistant materials for cleaning using water. 3.The unit can keep water pressure stable, and you can adjust required pressure setting on the electronic screen. 4. No water hammer occurred when pump is in use. 5. The motor rotational speed will change according to current consuming water capacity for saving power and electricity costs. 6. Dry-running detection. It will shut down automatically while no water flows in ,to avoid motor from burn out.
APPLICATIONS
1. Water supply systems, water treatment systems, and reverse osmosis devices. 2. Water pressure boosting for households, apartments, and villas 3.Beauty shops, villas, restaurants, spa equipments, motels, small hotels. 4.Industrial pressure boosting systems and washing equipments.
OPERATING CONDITIONS
Power:0.5HP~5HP (0.37~3.7KW) Motor: IP54 / Insulation F Only single phase 1Phase 110V/220V (60Hz)                           3Phase 220V/380V (60Hz)                           1Phase 220V~240V (50Hz)                           3Phase 380V~415V (50Hz) Built in thermal overload protector Pressure Setting Range: 1.4~6.9 bar (Depending on different model)  Max.Head: 78M
DOWNLOAD
VS Inverter Constant Pressure Pump Brochure(60Hz)Download (Link)  VS Inverter Constant Pressure Pump Brochure(50Hz)Download (Link)  Brief Brochure of Commercial Pump Download (Link)
