Domestic & Commercial
|
|
|
|

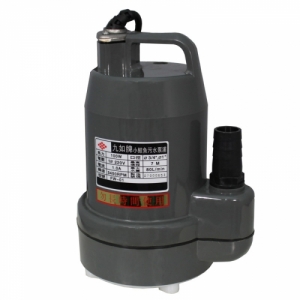

FW Residential Sump Pump
| |
|
|
 |
 |
|
| |
|
|
| FEATURES |
|
|
| |
|
|
- High capacity performance,efficient 100W motor with low amperage providing energy savings.
- Robust,lightwight,portable and saving space.
- Weather-proof AAS plastics,Built-in overheat protector,IP68 quality approved waterproof structure,equipped with mechanical seal,oil seal and epoxy resin sealed cable base.
- Outlet discharge is available 15mm(1/2") and 20mm(3/4").
|
| |
|
|
| APPLICATIONS |
|
|
| |
|
|
| Tank water circulation,Gardening,Dewatering,Water recycles,water supply or drainage. Commercial and Residential ponds |
| |
|
|
| OPERATING CONDITIONS |
|
|
| |
|
|
- Ambient Temperature: 0~+40℃
- Liquid Temperature: +5~+30℃
- 24 hours continously running is forbidden.
- Depth: Max.10M
|
| |
|
|
| SPECIFICATION |
|
|
| |
|
|
- Output: 100W
- Protection: IP68
- Insulation: E
- Pole: 2P
- Voltage: 1phase 110; 220V*60HZ
- Discharge: 1/2” or 3/4"
- Max.Head: 7M
- Max.Capacity: 80 LPM(2.4M3/hr)
|
| |
|
|
