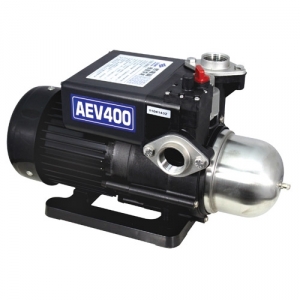

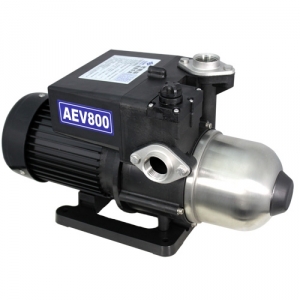

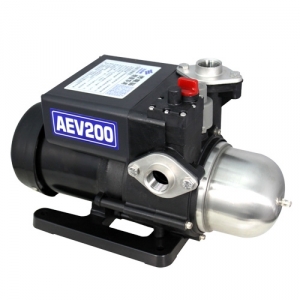

AEV CPU CONTROL CONSTANT PRESSURE PUMP

FEATURES
1.The AEV is a complete, all-in-one unit, consisted of pump, motor, pressure tank, and CPU controller. 2. When no water inflow occurs, the pump will auto shutdown in 30 seconds. CPU will auto sense the pump water status and restart the pump in 30 minutes until normal water returns. 3. Quiet operation without noise uplift standard of living. 4. Keep constant water pressure when using hot water shower.
APPLICATIONS

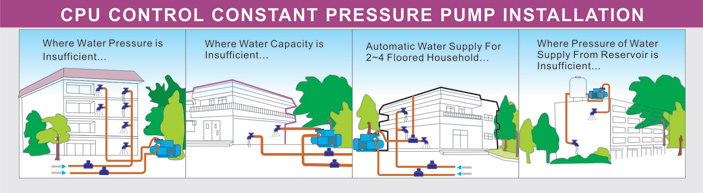

1.Water supply and pressure boosting in residential and commercial applications. 2. Water pressure boosting for barber shop, restaurant,sprinkler systems, washing machine, residence,villas.
OPERATING CONDITIONS
1.Ambient Temperature:  +2~+50℃ 2.Liquid Temperature:  +2~+50℃ 3.Relative Humidity:  Max. 85%(RH) 4.Before running,Ensure inlet water pressure is low than setting activation running pressure. 5.For clean water without abrasives.
SPECIFICATION

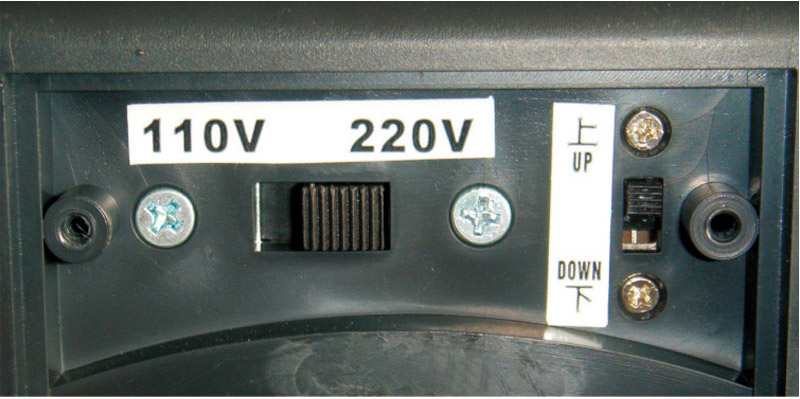

1.Power: 1/4HP;1/2HP;1HP 2.Protection: IP55 3.Motor Insulation: Class B 4.Voltage: Single phase only, 110/220V*60HZ ; 220~240V*50HZ 5.Suction&Discharge: 3/4” or 1” 6.Max. Head:  35M 7.Max. Capacity: 110LPM
DOWNLOAD
AEV CPU Control Constant Pressure Pump Brochure Download (Link)
