* Voltage / Frequency:220-240V / 50Hz, 220v/60hz, or 110V / 60Hz
* Induction Motor for this airless paint sprayer equipment: 2HP 1500w AC
* Pressure adjustabel from 0 to Max 250bar / 3650psi
* Nozzle size: 0.013”, 0.015", 0.017", 0.019", 0.021", 0.023", 0.025" (513,515,517,519, 521, 523, 525 airless tips)
* Max. airless tip size for DP6830: 1*0.025" (525 airless tip) or 2*0.015" two guns
* Max. airless tip size for DP6835: 1*0.029" (529 airless tip) or 2*0.017" two spray guns
* Delivery of DP6830 diaphragm pump sprayer: 3.0 L / min
* Delivery of DP6835 diaphragm pump sprayer: 3.5 L / min
* For Paint viscosity: medium to high viscosity, less than 125s
* Length of high pressure hose in the package:15M
* Maximum length of the hose: 60 meters
* Working pressure for hose:250bar
* Burst pressure for hose:800bar
* DP6830 weight: G.W.:46KGS; N.W.:44KGS
* DP6835 weight: G.W.:50KGS; N.W.:47KGS
* Carton dimensions:64x56x75cm

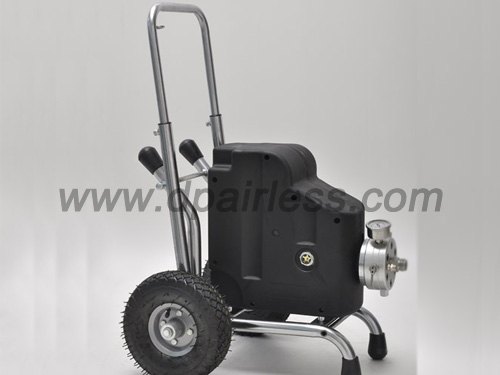

* New designed belt-driven airless diaphragm pump sprayer in Wagner type, with stronger power output, and more paint delivery.
* Attached with plastic outside cover so as to protect the motors in a good working area, with longer lifetime, and lower noise.
*Simple design, and easy maintenance.
*The machine will always supply constant pressure without pulsation.
* Attached with pressure gage for easy pressure adjusting
* Both vertical or horizontal type are available for this machine.

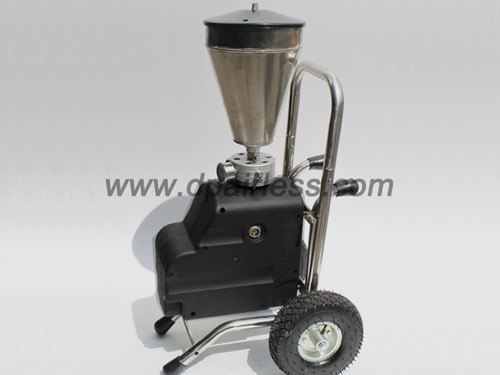

* Both siphon type, and gravity feed type (with hopper 5L) are available.
* The pump sprayer Equipped with 2hp single-phase brushless induction motor, diaphragm pump, high-pressure spray gun with in-line filter, replaceable spray tip, 15M high pressure hose, wrench set, and other easily-broken spare parts for repairing.
DP6835 paint sprayer kit include two airless spray guns, two hoses inside.
* Suitable for many kinds of colorant, varnish, lacker, Medium to high viscosity water-based latex paint,and some oil-based paints, primer, enamel, waterborne, colorant, stains, acrylic, emulsions, varnish, floor coating, and some anti-corrosive painting etc.
* This diaphragm pump is for Medium to large size indoor / outdoor wall painting, decoration, construction, building, etc
* 1-year limited warranty for this wagner design professional airless sprayer machine.
|
