Model No. K56 double-diaphragm pump
Max. output capacity: 56L/min
Max. air pressure: 7bar
Liquid/fluid inlet and outlet size: 3/4 "
Air inlet and outlet size 1/4" NPT
Diameter of the membrane. 142mm
Air consumption. 380 L/min
Max grain diameter. 3.0mm
Bare pump weight. 4.5kgs
Measurement of the carton: 53.5*40*25cm
1. New fluid transferring pump with double membrane, with high capacity, light weight and compact size.
2. High quality PTFE membrane in large diameter, generate big volume output,
and last longer lifetime without problem.
3. Air valve with double spool.
4. High precision paint pressure regulator & output regulator.
5. Low and high manifold with inner diameter enlarged easy for cleaning and inspection.
6. Could be used for paint, chemical, oil, fluid transfer etc which require big output capacity.
7. The teflon diaphragm use imported material from JAPAN , which has strong capability of anti-corrosive, anti-acid & bases. and ensure you the longgest lifetime. ideal for big volume fluid transferring jobs.

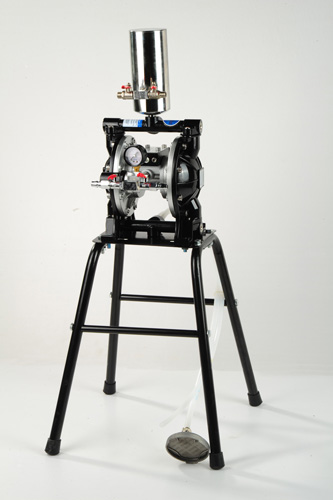

Above is K56 pump with cart, fluid retulator valve, air regulator valve full set.

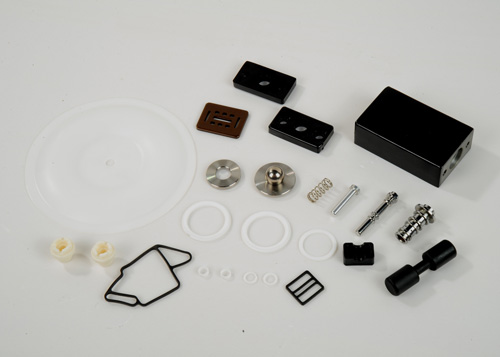

below is the repair kit for the K56 pump spray equipments
|
