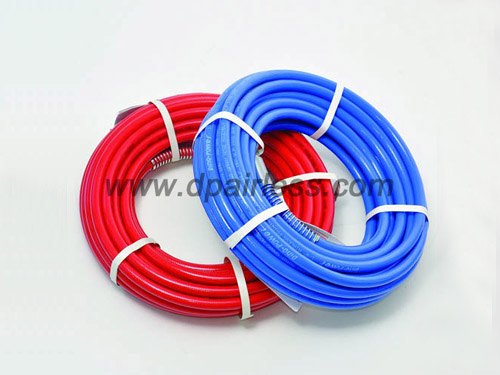

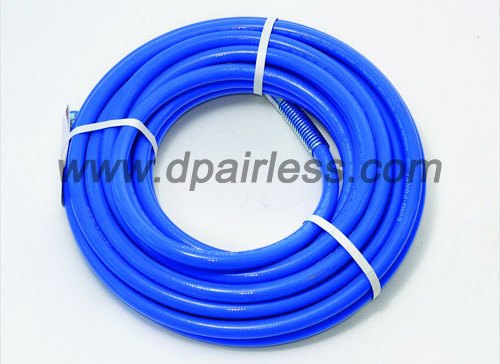

DP-637H paint hose for airless sprayer equipment
|
 |
|
DP-637H High pressure airless painting hose

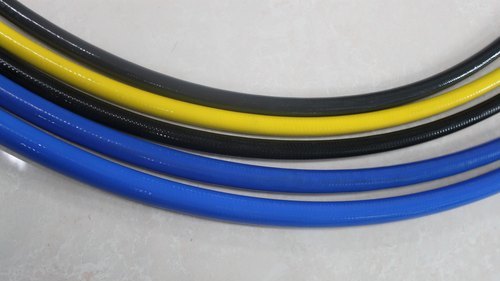

Color: Blue, Red, Yellow, Black
Material: nylon inner tube, polyurethane covered
UL approved
DP-637H1415 1/4"*15M
2-layers WIRE braided high-pressur painting hose (Standard SAE100 R7)
Model |
Size
|
Diameter (in*out)
|
Working pressure
|
Bursting pressure
|
|
|
inch
|
mm
|
Bar
|
psi
|
Bar
|
psi
|
|
637H01
|
1/4"
|
6.3X13.3
|
400
|
5800
|
1450
|
21000
|
|
637H02
|
5/16"
|
7.9X14.9
|
380
|
5500
|
1300
|
18850
|
|
637H03
|
3/8"
|
9.5X16.7
|
350
|
5070
|
1160
|
17400
|
|
637H04
|
1/2"
|
12.7X19.8
|
310
|
4490
|
1050
|
15900
|
2-layers FIBRE braided high-pressur painting hose (Standard SAE100 R7)
Model |
Size
|
Diameter (in*out)
|
Working pressure
|
Bursting pressure
|
|
|
inch
|
mm
|
Bar
|
psi
|
Bar
|
psi
|
|
637H05
|
1/4"
|
6.3X12.7
|
340
|
4930
|
1360
|
19270
|
|
637H06
|
5/16"
|
7.9X15.0
|
310
|
4495
|
1240
|
17980
|
|
637H07
|
3/8"
|
9.5X18.0
|
250
|
3625
|
1000
|
14500
|
|
637H08
|
1/2"
|
12.7X21.6
|
220
|
3190
|
880
|
12760
|
|
|
