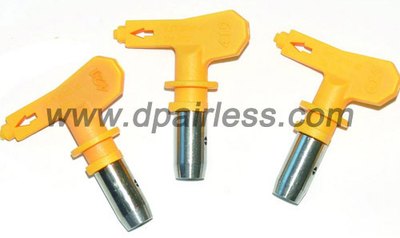

DP-637TT Reversible Airless tips & tip gasket combo kit
Stainless steel shank + Tungsten carbide orifice
Nylon + stainless steel tip gasket, Durable and easily reversed for cleaning.
Tip Shank Diameter: 11.1mm
Max.5000 PSI (345 BAR)
This tip could fit Titan, Wagner, ASM, Airlessco etc. Most kind of airless guns.
Guaranteed perfect quality, fine atomization. Over 5000 m2 lifetime.
Tip size available: from 0.011" to 0.027" (2xx to 6xx)

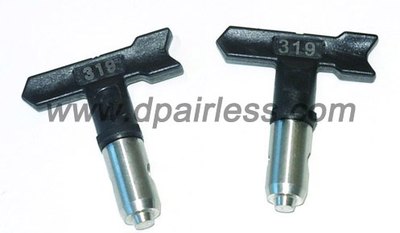

DP-637T5 Reversible Airless tips & tip gasket combo kit
Airless tip in RAC V type, used for old Graco guns.
Stainless steel shank + Tungsten carbide orifice
Nylon + stainless steel tip gasket, Durable and easily reversed for cleaning.
Tip Shank Diameter: 11.1mm
Max.5000 PSI (345 BAR)
Tip size available: from 0.011" to 0.035" (2xx to 6xx)

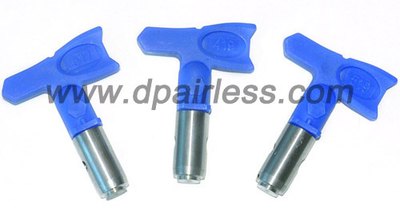

DP-637TX Reversible Airless tips & tip gasket combo kit
Airless tip in RAC X type, used for new Graco contractor guns.
Stainless steel shank + Tungsten carbide orifice
New material tip gasket, for easily reversed for cleaning.
Tip Shank Diameter: 11.4mm
Max.5000 PSI (345 BAR)
Guaranteed perfect quality, fine atomization. Over 5000 m2 lifetime.
Tip size available: from 0.011" to 0.027" (2xx to 6xx)

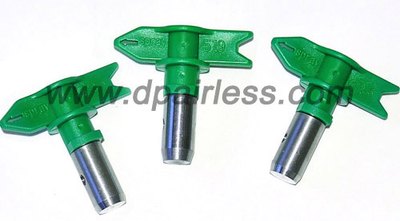

DP-637TW Reversible Airless tips & tip gasket combo kit
Stainless steel shank + Tungsten carbide orifice
Nylon + stainless steel tip gasket, Durable and easily reversed for cleaning.
Tip Shank Diameter: 11.1mm
Max.5000 PSI (345 BAR)
This tip could fit Wagner, Titan, ASM, Airlessco etc. most kind of airless guns.
Tip size available: from 0.011" to 0.031" (2xx to 6xx)

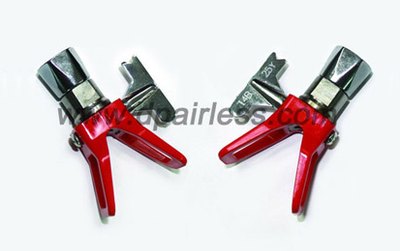

DP-637TP High pressure Airless tips & tip guard combo kit
High pressure airless tips & safety guard for pneumatic airless system
Max.7250 PSI (500 BAR)
Thread size: 7/8", M16*1.5 or 11/16"

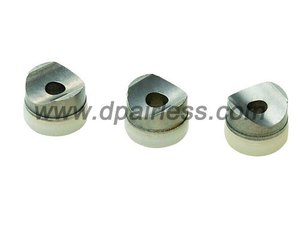

DP-637G Tip gasket / tip seal (stainless steel + nylon)
DP-637FN Flat nozzle and filter for old Graco machines
|
Orifice Size
|
Fan Width - Inches
|
Flow Rate
|
Application
|
Filter
|
|
inch
|
4” – 6” Fan
|
6” – 8” Fan
|
8” – 10” Fan
|
10” – 12” Fan
|
12” – 14” Fan
|
gpm
|
L/min
|
|
|
|
0.011”
|
211
|
311
|
411
|
511
|
611
|
0.12
|
0.45
|
Stain or Lacquer
|
150mesh (red)
|
|
0.013”
|
213
|
313
|
413
|
513
|
613
|
0.18
|
0.68
|
|
0.015”
|
215
|
315
|
415
|
515
|
615
|
0.24
|
0.91
|
Oil Base Paint
|
100mesh (yellow)
|
|
0.017”
|
217
|
317
|
417
|
517
|
617
|
0.31
|
1.17
|
Latex Paint / Acrylic / Enamel
|
100mesh
|
|
0.019”
|
219
|
319
|
419
|
519
|
619
|
0.38
|
1.44
|
60mesh (white)
|
|
0.021”
|
221
|
321
|
421
|
521
|
621
|
0.47
|
1.78
|
|
0.023”
|
223
|
323
|
423
|
523
|
623
|
0.57
|
2.16
|
Heavy latex
|
60mesh (white)
|
|
0.025”
|
225
|
325
|
425
|
525
|
625
|
0.67
|
2.54
|
|
0.027”
|
|
327
|
427
|
527
|
627
|
0.77
|
2.91
|
|
0.029”
|
|
329
|
429
|
529
|
629
|
0.90
|
3.41
|
Elastomeric / Blockfiller / Primer /
|
30mesh (green)
|
|
0.031”
|
|
331
|
431
|
531
|
631
|
1.03
|
3.90
|
|
0.033”
|
|
333
|
433
|
533
|
633
|
1.17
|
4.43
|
|
0.035”
|
|
335
|
435
|
535
|
635
|
1.31
|
4.96
|
|
