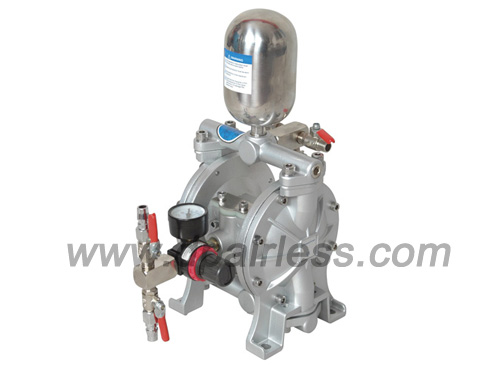

DP-K18 double membrane pump
|
 |
|
1. New fluid transferring pump with double membrane, with high capacity, light weight and compact size.
2. High quality PTFE membrane in large diameter, generate big volume output, and last longer lifetime without problem.
3. Air valve with double spool.
4. High precision paint pressure regulator & output regulator.
5. Low and high manifold with inner diameter enlarged easy for cleaning and inspection.
6. Could be used for paint, chemical, oil, fluid transfer etc.
| Model number |
DP-K18 |
| Max deliver capacity |
18L/min |
| Max air pressure |
7bar |
| Liquid inlet and outlet size |
3/8″ NPT |
| Air inlet and outlet size |
1/4″ NPT |
| Max. Grains size |
1.5mm |
| Air consumption |
150 L/min |
| Max grain diameter |
1.5mm |
| Bare pump weight |
3kgs |

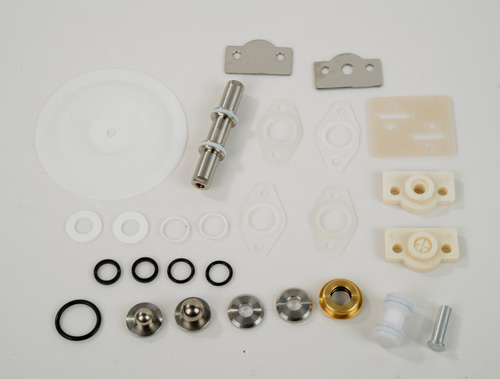

. below is the repair kit for K18 double-membrane pumps
|
|
Download manual for K18 double-membrane pump
