Max.operating pressure for the airless spray gun: 270bar (27Mpa, 3900psi)
Inlet thread: M16 x 1.5 or NPSM & PT 1/4”
Outlet thread:7/8" or 11/16 – 16un/2A
Max.temperature of spray coating material: 43C
Permitted temperature: +5 - +40C
Max.sound level: 80dB(A)
Net weight: 0.6kg

Airless Tip size available for this airless spray gun (could fit Graco airless guns also):

211 / 213 / 215 / 217 / 219 (spraying width = 4" )
311 / 313 /315 / 317 / 319 / 321 (spraying width = 6 " )
411 / 413 / 415 / 417 / 419 / 421 (spraying width = 8 " )
513 / 515 / 517 / 519 / 521 / 523 / 525 / 527 (spraying width = 10 " )
613 / 615 / 617 / 619 / 621 / 623 / 625 / 627 / 629 / 631 / 633 (spraying width = 12 " )

Airless Filter size (could fit Graco airless spray guns): 30# 50# 80# 100# 150# mesh

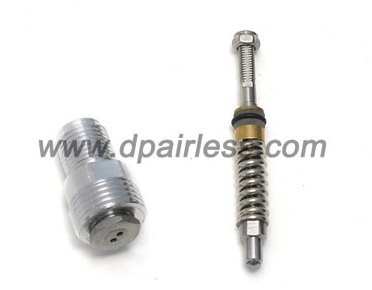

Below is the repair kit for DP6372 airless spray gun
