* Pressure rate: 45:1
* Max pressure:270bar / 3900psi
* Max.tip size: 0.023”
* Paint Delivery / fluid flow: 12.7L/min (3.2gallon/L)
* Air-compressor pressure / air input pressure: 0.3-0.6Mpa (3-6kgs/cm2, 3-6bar)
* Cylinder diameter: 254mm
* Stroke: 127mm
* Length of high pressure hose: Dia.10mm 5M, Dia.8mm 10M, Dia.6mm 3M
* G.W.:102KGS; N.W.:80KGS
* Measurement of the sprayers equipment: 72*62*123cm
* Pressure rate: 32:1
* Max pressure:220bar / 3200psi
* Max.tip size: 0.023”
* Paint Delivery / fluid flow: 8L/min (2gallon/L)
* Air-compressor pressure / air input pressure: 0.3-0.7Mpa (3-7kgs/cm2, 3-7bar)
* G.W.: 60kgs; N.W.:42kgs
* Pressure rate: 63:1
* Max pressure: 378bar/5500psi
* Max.tip size: 0.025”
* Paint Delivery / fluid flow: 10L/min (2.6 gallon/L)
* Air-compressor pressure / air input pressure: 0.3-0.6Mpa (3-6kgs/cm2, 3-6bar)
* G.W.: 95kgs; N.W.:75kgs
* Pressure rate: 73:1
* Max pressure: 510bar/7400psi
* Max.tip size: 0.025”
* Paint Delivery / fluid flow: 18L/min (4.5gallon/L)
* Air-compressor pressure / air input pressure: 0.3-0.7Mpa (3-7kgs/cm2, 3-7bar)
* G.W.: 105kgs; N.W.:82kgs
|
Fluid Pressure Ratio
|
45:1
|
63:1
|
73:1
|
|
|
Delivery (max capacity)
|
12.7
|
10
|
18
|
L/min
|
|
Cycle Per Gallon
|
15
|
19
|
20
|
cycle
|
|
Cycle Per Liter
|
4
|
5
|
5
|
cycle
|
|
Max. Recommended Pump Speed
|
50
|
50
|
93
|
cycle per min
|
|
Air Motor Effective Diameter
|
254
|
254
|
270
|
mm
|
|
Stroke
|
127
|
127
|
127
|
mm
|
|
App. Air consumption at 5bar
|
1,200
|
1,200
|
1,600
|
L/min
|
|
Air Operating Pressure Range
|
3-6
|
3-6
|
3-7
|
bar
|
|
Noise Level
|
95
|
95
|
84
|
dB
|
|
Maximum Discharge pressure
|
270
|
378
|
510
|
bar
|
|
Air Inlet
|
3/4
|
3/4
|
3/4
|
inch
|
|
Fluid Outlet
|
1
|
3/4
|
1
|
inch
|
*Heavy duty design airless sprayer and paint sprayer for professional users and for many industrial applications..
* This professional pneumatic airless sprayer equipped with reciprocating piston pump, Suction device, Pump holder, high-pressure spray gun with filter, high pressure hoses, lubricating oil, wrench set, and other easily-broken spare parts for repairing.
* The pneumatic air-assisted airless paint sprayer is suitable for all kinds of sealers, topcoats, primers and wiping stains, solids topcoats, colorant, varnish, lacker, in medium to high viscosity , anti-corrosive, Chlorinated Rubber paint, epoxy paint etc.For medium to large indoor / outdoor wall painting, anticorrosive project, decoration, construction, road, bridge, woodworking, sheet metal fabrication, general machinery etc

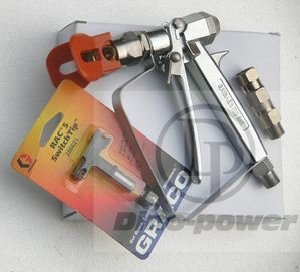

Airless painting gun with 621# (0.021") Graco airless tip.

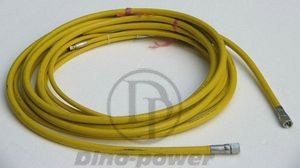

High pressure airless painting hose Dia.10mm 5M length, Dia.8mm 10M, & Dia.6mm 3M.

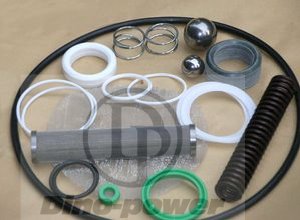

Accessories,airless spare parts, V-packing set, spring, steel ball, ...for repairing.
Fluid section for the pneumatic airless sprayer 6390

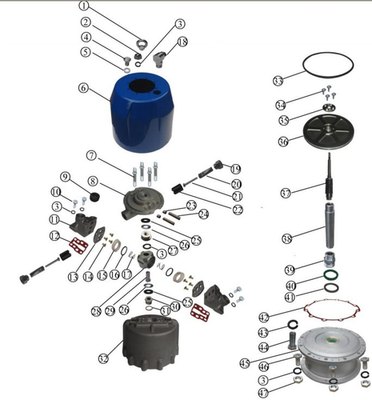

Air motor for DP6390 pneumatic airless painting equipment
Download manual for pneumatic airless paint sprayer 63:1
|
