* Voltage / Frequency: 220-240V/50Hz, 220v/60hz or 110V/60HZ
* Motor for this paint sprayer equipment: 1300w 1.3kw
* Max pressure: 220bar / 3200PSI
* Nozzle size: 0.015", 0.017", 0.019", 0.021 ” (515,517,519, 521 airless tip)
* Max.tip size: 0.023" (for one gun only)
* Spraying width: 300mm
* Paint Spraying delivery volume: 2.2 L / min (for one gun spraying)
* Recommended spraying distance: 400-450mm
* Length of high pressure hose:15M
* Max.pressure for the painting hose: 90Mpa / 900bar / 13000psi
* G.W.:22KGS; N.W.:20KGS
* Measurement of the sprayers equipment: 51*44*46.5cm

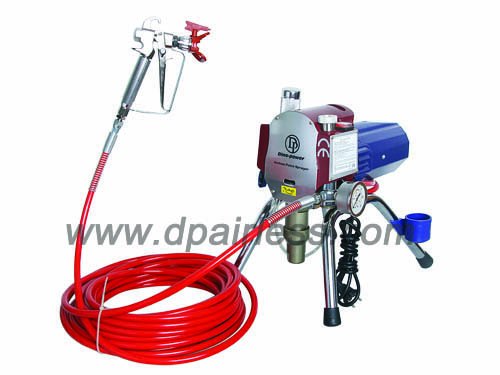

*Powerful heavy duty piston pump with bigger size body and piston with more paint delivery. This paint sprayer equipment is ideal for big area painting jobs with high efficiency and save time.
* Equipped with single-phase motor 1.3kw piston pump, one airless spray guns include airless filter inside, one 15M high pressure hoses, lubricating oil, wrench set, and other easily-broken spare parts for repairing.
* DP6385 paint sprayer is Suitable for all kinds of colorant, varnish, lacker, Medium to high viscosity latex paint, emulsion paint etc.For Medium to large indoor / outdoor wall painting, anticorrosive project, decoration, construction, etc
|
Below is some pictures of the parts for your reference.
(Internal piston guider, for reducing the wearing of the piston rod, prolong its lifetime, and also reduce the noise, and easy maintenance)
(Stainless steel pump body, and Piston rod for DP6385 paint sprayers)
(stainless steel piston pump body and piston rod)
(Leather v-packing for longer lifetime)
(New Improved electronic pressure control board)
(Powerful permanent magnet motor 1300w for DP6385 paint sprayer equipment, 1-year warranty)
(storge tank / pump manifold for less pulse during spraying)
(Exploded drawing parts for DP6385 painting sprayers)
Download DP6385 instruction manual
Below is the picture of the new improved DP6385i with electronic pressure control board for easy pressure adjusting.
|
