* Voltage / Frequency: 220-240V/50Hz, 220v/60hz or 110V/60HZ
* Motor for the Airless sprayer pump: 1.5HP 1100w
* Max pressure: 220bar / 3200PSI
* Nozzle size: 0.015", 0.017", 0.019” (515,517,519 airless tip)
* Spraying width: 250mm
* Paint Spraying delivery volume: 1.9 L / min
* Length of high pressure hose:15M
* Max.pressure for the hose: 90Mpa / 900bar / 13000psi
* G.W.:20.5KGS; N.W.:18.5KGS
* Measurement of the sprayers equipment: 51*44*46.5cm
* Light-weighted, high productivity airless paint sprayer pump for both DIY and semi-professionals.
* Equipped with single-phase motor 1.1kw, piston pump, high-pressure metal airless spray gun with die cast aluminum housing, replaceable spray tip in full size, 15M high pressure hose, lubricating oil, wrench set, and other easily-broken spare parts for repairing.
* This airless sprayer kit is suitable for many kinds of colorant, varnish, lacker, Medium to high viscosity latex paint, etc. For Medium to large indoor / outdoor wall painting, anticorrosive project, decoration, metal-construction, etc
|

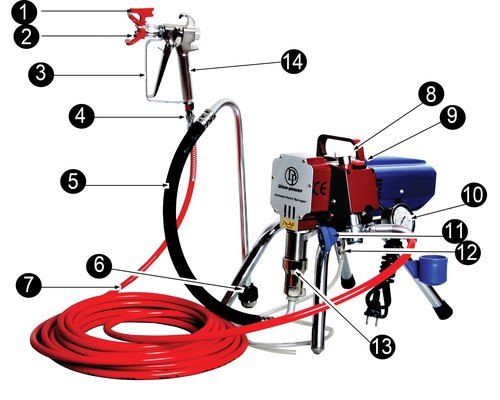

1. Airless tips 2. Tip base / Safety guard 3. Airless spray gun
4. Swivel connector 5. Suction hose 6. Suction filter
7. Painting Hose 8. Pressure regulator 9. On-off switch
10. Pressure gage 11. Prime / Spray Valve 12. Drain tube
13. High pressure pump body. 14. Airless gun filter inside the handle

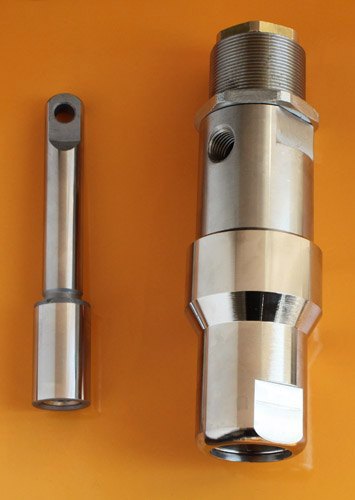

(high pressure piston pump body in stainless steel material)

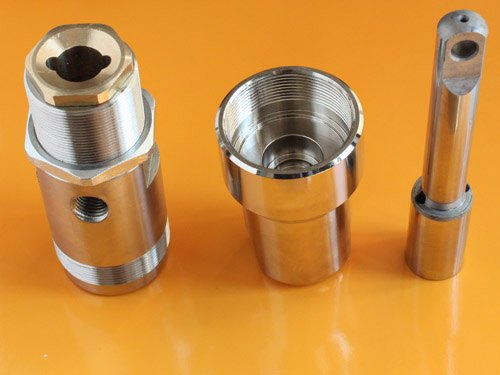

(piston pump body, and piston rod)

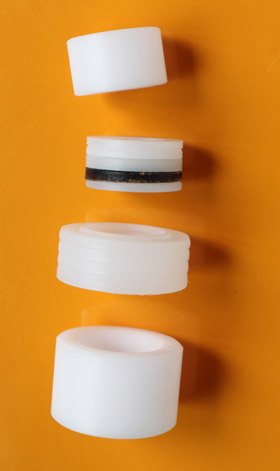

(Teflon V-packing set for DP6386 Airless sprayer pump)
(New Improved electronic pressure control board)
(permanent magnet motor 1100w for DP6386 airless paint sprayer system, 1-year warranty)
Download DP6386 airless paint sprayer instruction manual

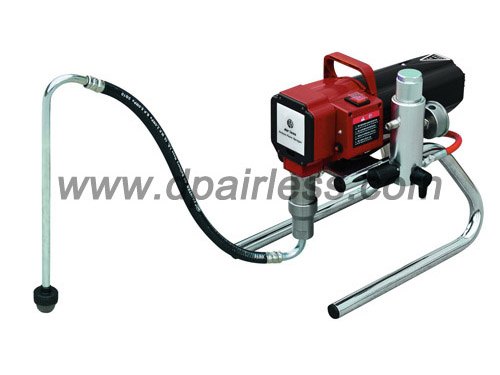

Below is the new DP6386i with electronic pressure control board.
|
