* Voltage / Frequency: 220-240V/50Hz, 220v/60hz or 110V/60HZ
* Motor for this paint sprayer equipment: 2HP 1.5kw 1500w
* Max pressure of the paint sprayer machine: 220bar / 3200PSI
* Tip Nozzle size: 0.015", 0.017", 0.019”, 0.021” (515,517,519,521 airless tip)
* Max.tip size: 0.025" (for one gun only) or 0.015" x 2 guns
* Spraying width: 250mm
* Paint Spraying delivery volume: 3.0 L / min
* Recommended spraying distance: 350-500mm
* Length of high pressure hose:15M
* Max.pressure for the painting hose: 90Mpa / 900bar / 13000psi
* G.W.:35KGS; N.W.:32KGS
* Measurement of the sprayers equipment: 46*50*79cm
* Powerful heavy duty piston pump sprayer , could be used for 2 airless guns (with 0.015" tip size) samewhile. Ideal for big area painting jobs with high efficiency and save time.
* This pump sprayer Equipped with single-phase motor 1.5kw, piston pump, 1 airless spray gun , two 15M high pressure hoses, lubricating oil, wrench set, and other easily-broken spare parts for repairing.
* DP6387 airless paint sprayer is Suitable for all kinds of colorant, varnish, lacker, Medium to high viscosity latex paint, emulsion paint etc.For Medium to large indoor / outdoor wall painting, anticorrosive project, decoration, construction, etc
|
Above is the new improved piston pump DP6387i with electronic pressure control device,

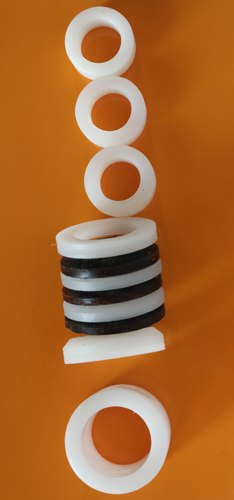

(Leather V-packing set for DP6387 airless paint sprayer)

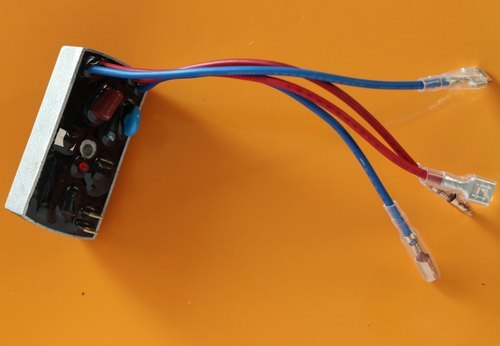

(New improved electronic pressure control board)

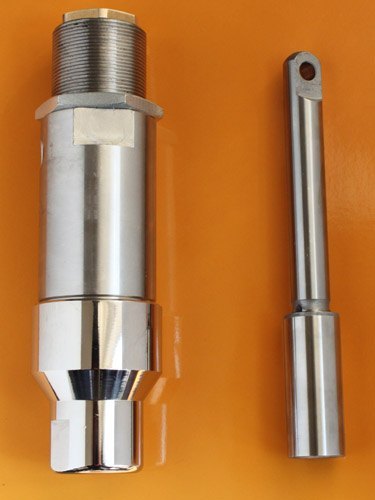

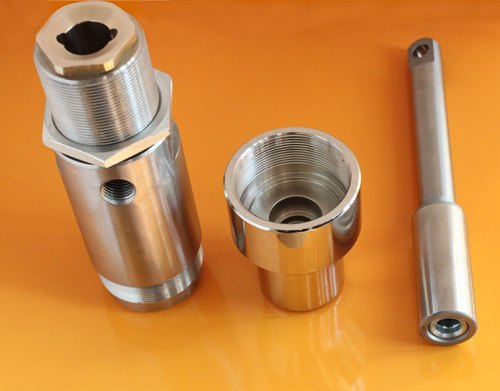

(Stainless steel fluid pump body, and big size piston rod for more painting delivery)
(Powerful permanent magnet motor 1500w for DP6387 paint sprayer equipment, 1-year warranty)
(storge tank for less pulse during paint spraying)
Download DP6387 instruction manual
|
